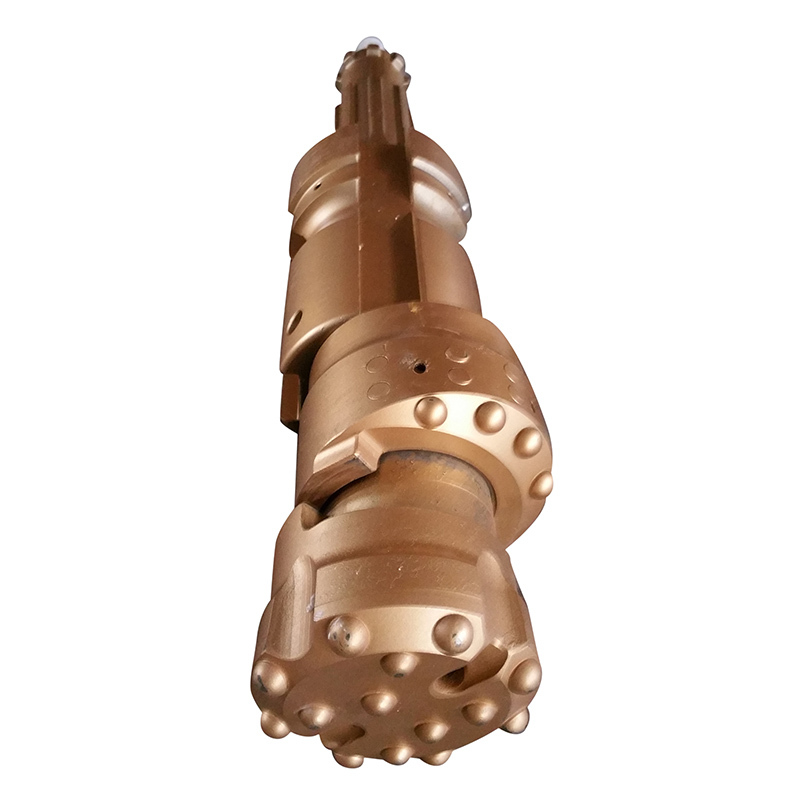

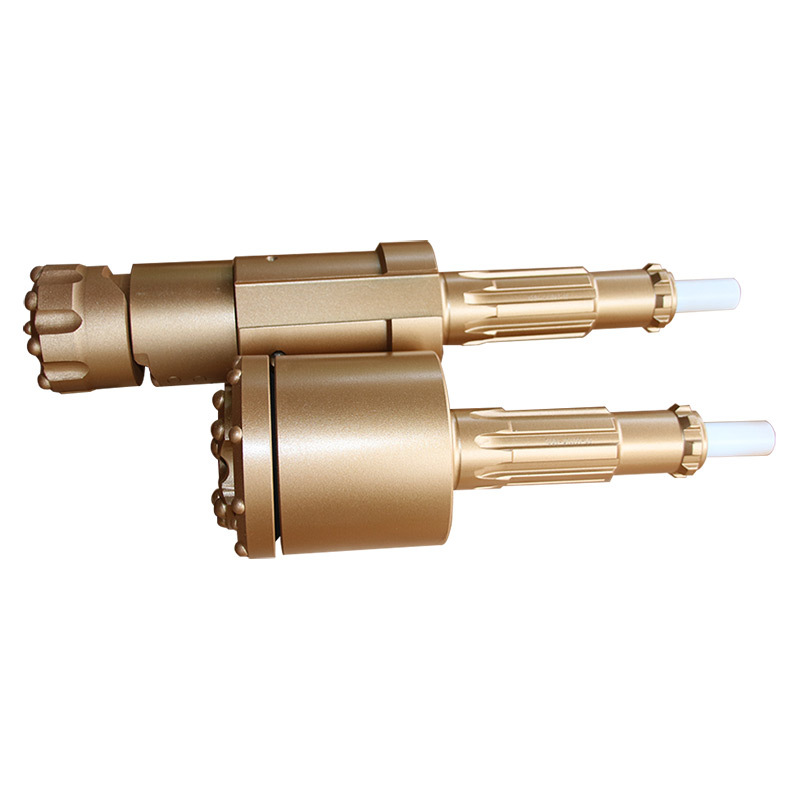

ODEX CASING SYSTEM

ODEX Casing System, also named Eccentric Casing System, is suitable for drilling water wells, geothermal wells, short mircopiles,medium mini-type grouting hole of building, diamond harbour project.
Economy: Eccentric is the most economical solutions because its ingenious reaming wing the bit is retrievable can be used at the next hole.
Working Principle:
When drilling, the reamer bit will rotate out to enlarge the hole which enough for the casing tube slide down behind the reamer. When reached required depth, the drill pipe will drill to the direction and the reamer bit will retract, It is allowing the whole drilling system to pass through the casing.

MODEL	PA90	PA115	PA140	PA165	PA190
Casing Tube(max.O.D)(mm)	115	142	171	195	222
Casing Tube(min.O.D)(mm)	102	128	155.6	182.6	205
Guide Sleeve	Effective length: 174mm	Effective length: 174mm	Effective length: 205mm	Effective length: 225mm	Effective length: 250mm
Drill Pipe	Connection Thread: API 2 3/8" REG;O.D.:76mm; W.Flats:65mm	Connection Thread: API 2 3/8" REG;O.D.:76mm; W.Flats:65mm	Connection Thread: API 2 3/8" REG;O.D.:89mm; W.Flats:65mm	Connection Thread: API 31/2" REG;O.D.:114mm;W.Flats:95mm	Connection Thread: API 3 1/2" REG;O.D.:114mm;W.Flats:95mm
DTH Hammer	DHD3.5,COP2. MISSION30	COP44,DHD340, MISSION40	DHD350,COP54, MISSION50	COP64,DHD360, MISSION60	COP64,DHD360, MISSION60
Casing Shoe	L3=90mm L4=55mm D3=101.7mm D4=93mm	L3=76mm L4=55mm D3=127.5mm D4=117mm	L3=90mm L4=63mm D3=155.3mm D4=143mm	L3=95mm L4=55mm D3=181.5mm D4=166mm	L3=110mm L4=70mm D3=204.7mm D4=193mm
Guide Device	L1=35mm L2=138mm D1=92mm D2=100mm	L1=48mm L2=136mm D1=115mm D2=126mm	L1=55mm L2=160mm D1=141mm D2=154mm	L1=61.5mm L2=181.5mm D1=165mm D2=178mm	L1=62.8mm L2=185mm D1=191mm D2=203mm
Reamer	D5=91mm L5=70mm Reaming Diameter:123mm ;Reamer has 4*12 buttons	D5=114mm L5=89mm Reaming Diameter:152mm; Reamer has 5*14 buttons	D5=138mm L5=69.5mm Reaming Diameter:185mm; Reamer has 7*14 buttons	D5=164mm L5=79.5mm Reaming Diameter:211mm; Reamer has 7*14 buttons	D5=185.5mm L5=90.2mm Reaming Diameter:237mm; Reamer has 7*16 buttons
Pilot Bit	D6=90mm L6=59mm Gauge button:812 Front button: 610	D6=114mm L6=67mm Gauge button:814 Front button: 612	D6=138mm L6=66mm Gauge button:816 Front button: 814	D6=165.8mm L6=82.5mm Gauge button:816 Front button: 816	D6=190mm L6=82mm Gauge button:918 Front button: 916
