SHIMES AND WEDGES

Item No.: 00115
Shimes and wedges:
Dia:14mm to 38mm
Length:125mm to 600mm
Description Review
Description

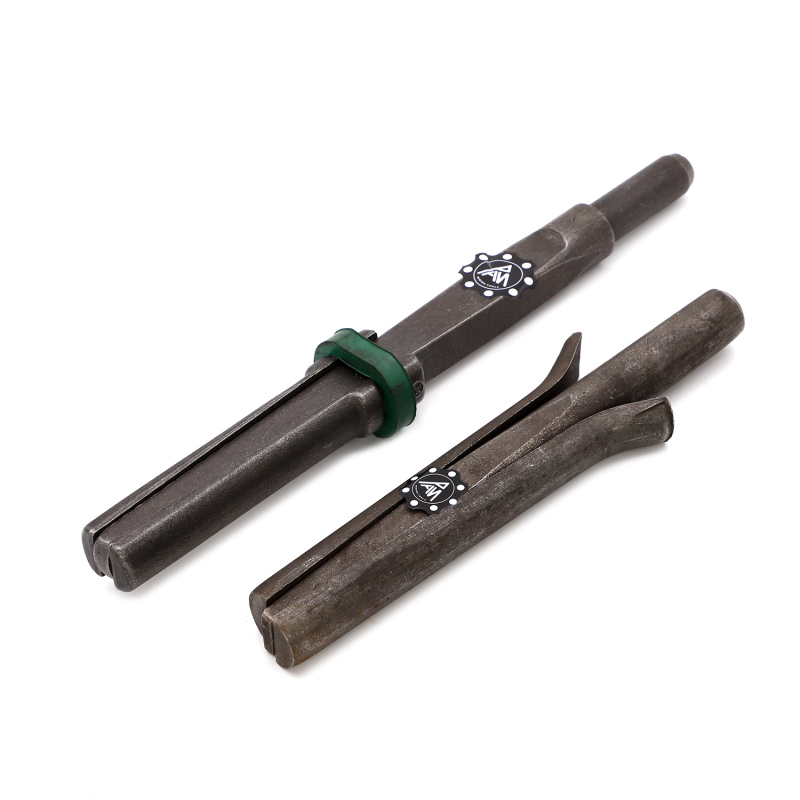

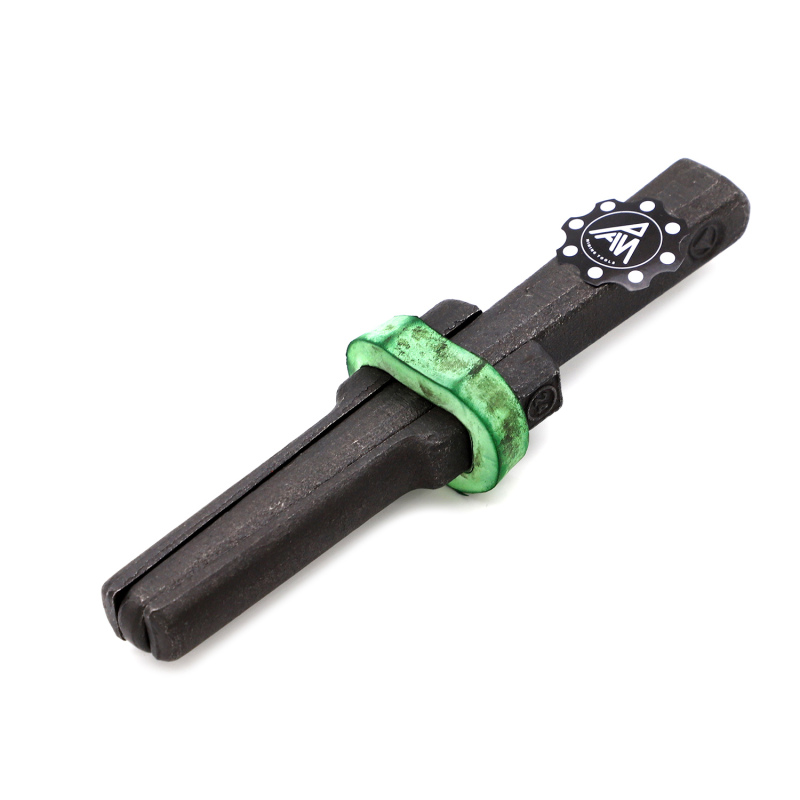

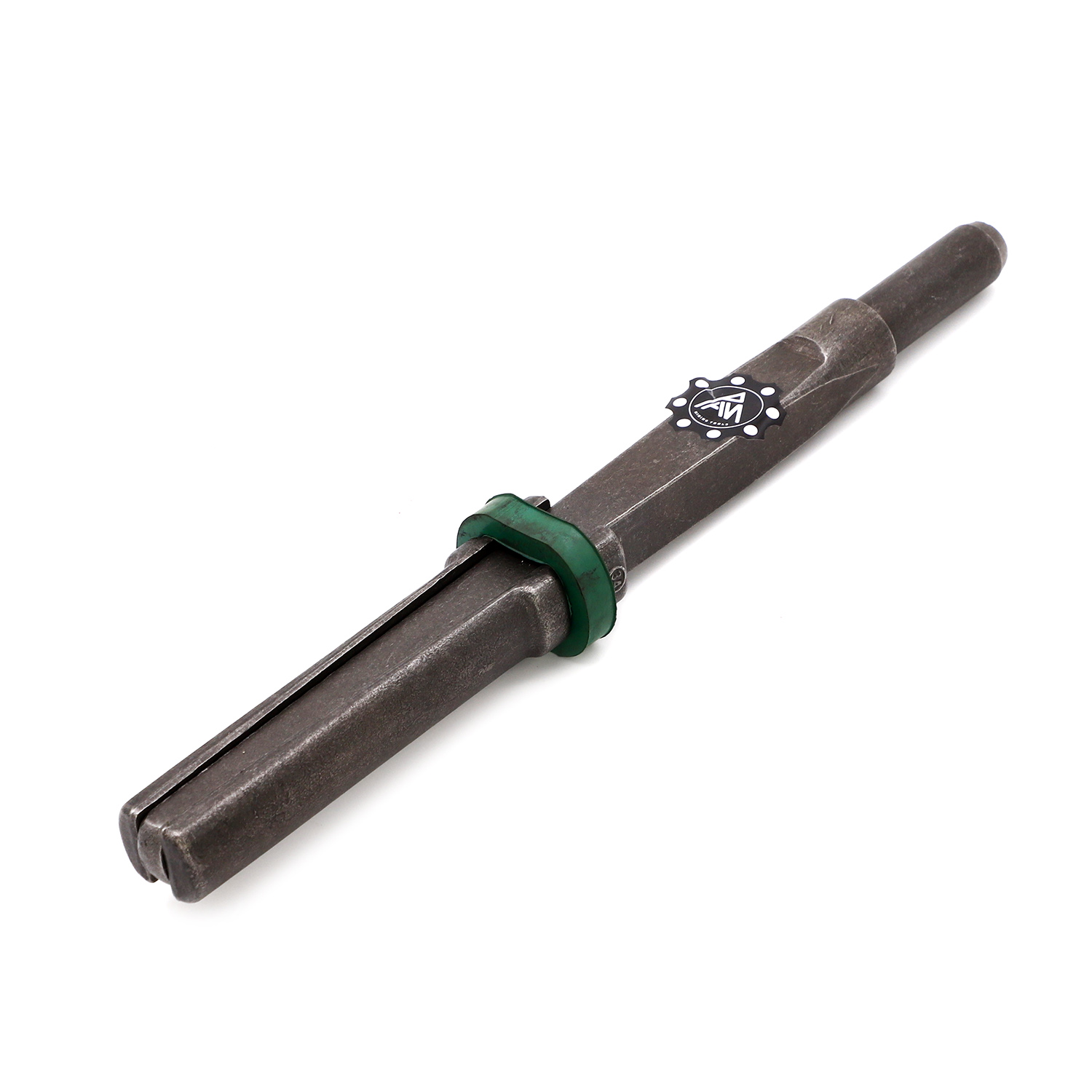

SHIMES AND WEDGES

Shims and wedges are used in conjunction with hammer, (compressor) drilling machine bits for stone blocks billet were split..Used to split the hard stone, rock, granite, marble, concrete.
Instruction for use:

Consists of a Central wedge and 2 wedges, first with quarrying dedicated drill holes in the hole to clear the residual powder, the two big wedge head-down, plane put in the hole, then placed upside the small wedge in the middle of the wedge. Finally, beat with a hammer.

A hole is placed a pair of wedge quarrying, the actual number use according to the workload of the decision. Usually the distance between the two holes about 10cm, depending on the actual use depending on the workload, it can be reused many times.

HAND HELD TYPE:

TYPE
DIA(MM)
LENGTH(MM)
PAH-14-125
14
125
PAH-16-125
16
125
PAH-24-190
24
190
PAH-32-270
32
270
PAH38-325
38
325
PAH38-600
38
600


AIR PICK TYPE:

TYPE
DIA(MM)
LENGTH(MM)
PAG-20-270
20
270
PAG-30-365
30
365
PAG-32-365
32
365
PAG-32-395
32
395
PAG-34-365
34
395
PAG-34-395
34
395
PAG-36-365
36
365
PAG-36-395
36
395
PAG-38-365
38
365
PAG-38-395
38
395
