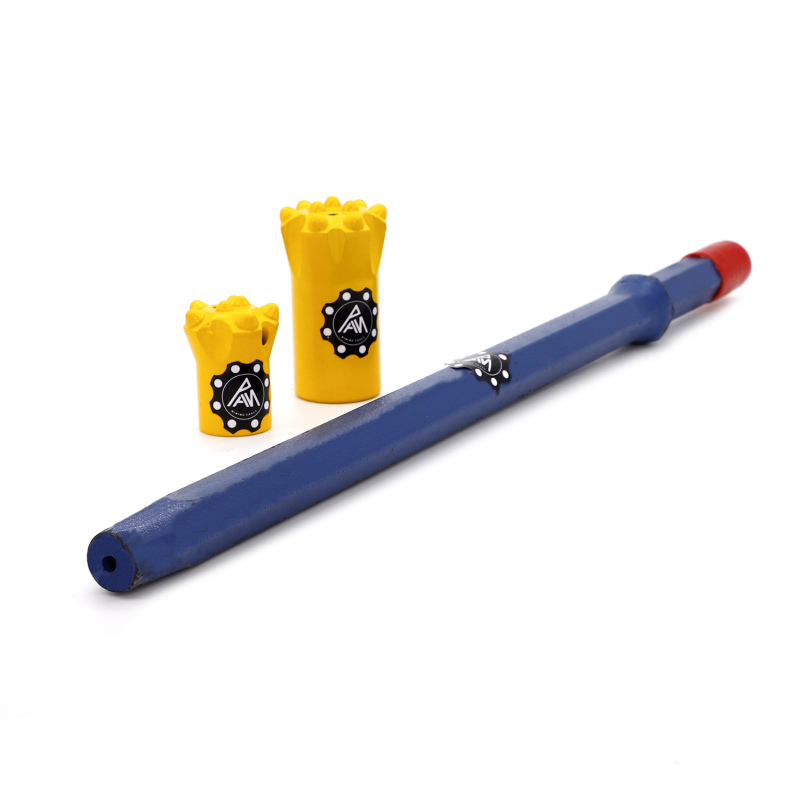

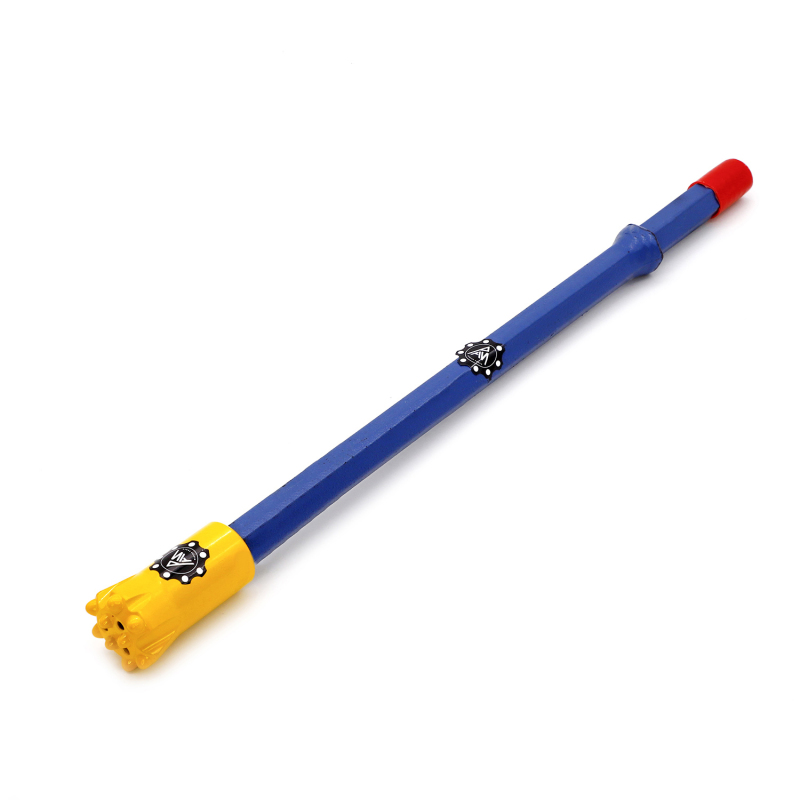

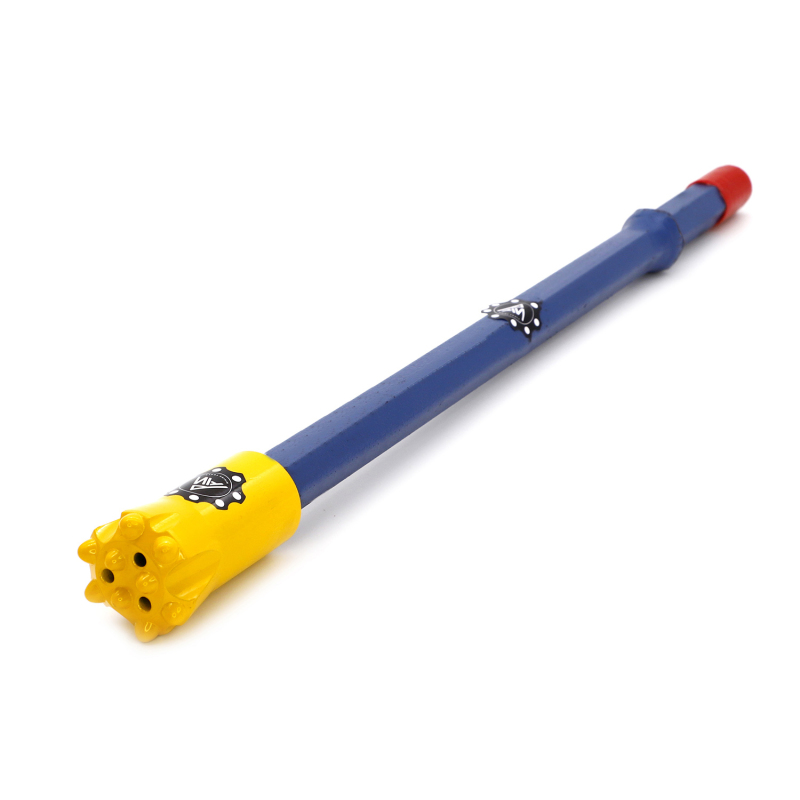

TAPERED DRILL ROD

Item No.: 00103
Shank: 22*108mm
Normal diameter or rod is 22mm, named H22, PANDA can also make H19 and H25.
Effective Length from 300mm to 8000mm.
Degrees is 7°.11°,12°, which suits the bit you are using.
Description Review
Description
TAPERED DRILL ROD

Perfect designs,high quality steel , We provides leading strength and penetration rates for more

productivity, excellent straightness and hole clean quality, get max drilling performance to save up fuel cost rate.
We can design and manufacture according to customers' samples or drawings of the length., Our taper rod is made by high quality steel, through heat treatment so that it can be used for hard rock drilling, and transmit intensive impact energy into the rock with the least possible loss of energy.

Taper Drill Rod is used for rock drilling, blasting holes and other drilling situations, including quarries, coal mines, traffic and other construction.

Notice:
1, All length as above are only our standard length, but other lengths are also available upon request.
2, The unit weight for each size is for reference only.
3, Face design, length must be confirmed when the order is confirmed.
4, Other model rods are also available as per request.


LENGTH(MM)
LENGTH(FEET)
WEIGHT(KG)
PART CODE
305
1
1.7
PAD0305
915
3
2.9
PAD0915
1830
6
6.0
PAD1830
2135
7
6.5
PAD2135
2438
8
7.8
PAD2438
3050
10
9.9
PAD3050
3350
11
10.1
PAD3350
4270
14
12.7
PAD4270
4880
16
15.1
PAD4880
5490
18
17.5
PAD5490
6100
20
20.0
PAD6100
7015
23
22.5
PAD7015
7930
26
25.0
PAD7930
